F127齒輪減速馬達功率：

F127Y7.5KW,F127Y11KW,F127Y15KW,F127Y18.5KW,F127Y22KW,F127Y30KW,F127Y37KW,F127Y45KW,F127Y55KW,F127Y75KW,F127Y90KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

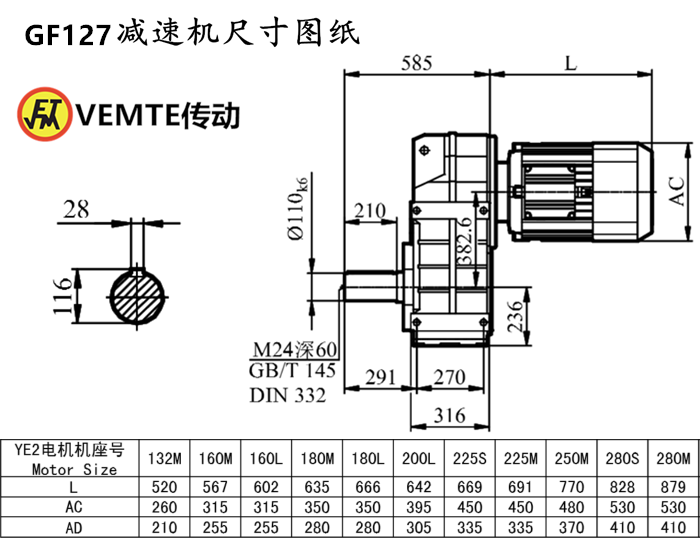

GF系列減速器F127安裝尺寸：輸出軸Φ110+鍵6（可定做），高856*寬530*長585（帶輸出軸）

減速機F127減速比：

170比減速機,153比減速機,125比減速機,114比減速機,98比減速機,87比減速機,75比減速機,70比減速機,63比減速機,55比減速機,48比減速機,42比減速機,37比減速機,31比減速機,25比減速機,26比減速機,24比減速機,21比減速機,18比減速機,16比減速機,14比減速機,12比減速機,10比減速機,8比減速機,7比減速機,6比減速機,5比減速機,4比減速機

減速機F127輸出轉數：齒輪減速器

8.2rpm/min減速機,9.1rpm/min減速機,11rpm/min減速機,12rpm/min減速機,14rpm/min減速機,16rpm/min減速機,19rpm/min減速機,20rpm/min減速機,22rpm/min減速機,25rpm/min減速機,29rpm/min減速機,33rpm/min減速機,38rpm/min減速機,45rpm/min減速機,55rpm/min減速機,52rpm/min減速機,57rpm/min減速機,65rpm/min減速機,74rpm/min減速機,86rpm/min減速機,96rpm/min減速機,112rpm/min減速機,137rpm/min減速機,158rpm/min減速機,178rpm/min減速機,206rpm/min減速機,254rpm/min減速機,299rpm/min減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

偏心減速機F127輸出扭矩：

減速機12000N.m,減速機11000N.m,減速機10000N.m,減速機9500N.m,減速機8500N.m,減速機7000N.m,減速機6000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大）

減速機F127電機型號：F127DRE132M4,F127DRE160M4,F127DRE180M4,F127DRE200M4,F127DRE225M4,F127DRE250M4,F127DRE280M4,F127DRS132M4,F127DRS160M4,F127DRS180M4,F127DRS200M4,F127DRS225M4,F127DRS250M4,F127DRS280M4,F127DT132M4,F127DT160M4,F127DT180M4,F127DT200M4,F127DT225M4,F127DT250M4,F127DT280M4,F127DV132M4,F127DV160M4,F127DV180M4,F127DV200M4,F127DV225M4,F127DV250M4,F127DV280M4,F127Y132M4,F127Y160M4,F127Y180M4,F127Y200M4,F127Y225M4,F127Y250M4,F127Y280M4,F127DRE132L4,F127DRE160L4,F127DRE180L4,F127DRE200L4,F127DRE225L4,F127DRE250L4,F127DRE280L4,F127DRS132L4,F127DRS160L4,F127DRS180L4,F127DRS200L4,F127DRS225L4,F127DRS250L4,F127DRS280L4,F127DT132L4,F127DT160L4,F127DT180L4,F127DT200L4,F127DT225L4,F127DT250L4,F127DT280L4,F127DV132L4,F127DV160L4,F127DV180L4,F127DV200L4,F127DV225L4,F127DV250L4,F127DV280L4,F127Y132L4,F127Y160L4,F127Y180L4,F127Y200L4,F127Y225L4,F127Y250L4,F127Y280L4,F127DRE132S4,F127DRE160S4,F127DRE180S4,F127DRE200S4,F127DRE225S4,F127DRE250S4,F127DRE280S4,F127DRS132S4,F127DRS160S4,F127DRS180S4,F127DRS200S4,F127DRS225S4,F127DRS250S4,F127DRS280S4,F127DT132S4,F127DT160S4,F127DT180S4,F127DT200S4,F127DT225S4,F127DT250S4,F127DT280S4,F127DV132S4,F127DV160S4,F127DV180S4,F127DV200S4,F127DV225S4,F127DV250S4,F127DV280S4,F127Y132S4,F127Y160S4,F127Y180S4,F127Y200S4,F127Y225S4,F127Y250S4,F127Y280S4

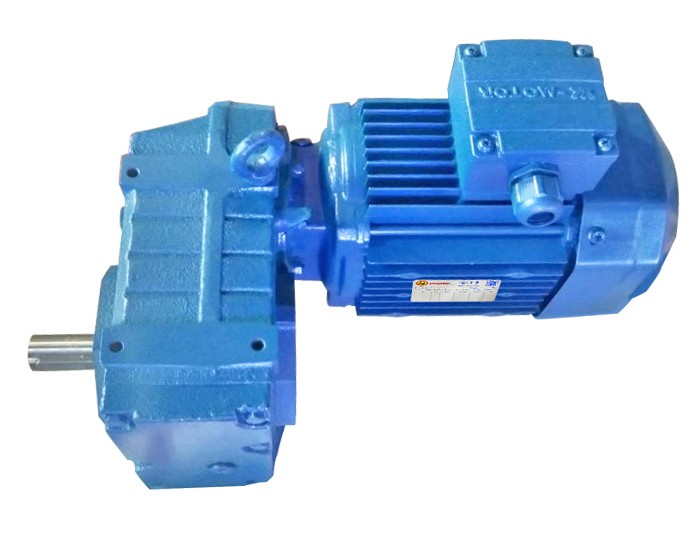

減速機F127配各種電機的實物圖：

減速機F127生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-fxiliejiansuji-cn.html

推薦類似型號：FF127減速機
