FAF77平行軸減速電機功率：

FAF77Y0.12KW,FAF77Y0.18KW,FAF77Y0.25KW,FAF77Y0.37KW,FAF77Y0.55KW,FAF77Y0.75KW,FAF77Y1.1KW,FAF77Y1.5KW,FAF77Y2.2KW電機,FAF77Y3KW,FAF77Y4KW,FAF77Y5.5KW電機,FAF77Y7.5KW,FAF77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

減速機FAF77減速比：

減速器1:281,減速器1:262,減速器1:225,減速器1:198,減速器1:188,減速器1:166,減速器1:142,減速器1:130,減速器1:114,減速器1:108,減速器1:94,減速器1:85,減速器1:75,減速器1:72,減速器1:66,減速器1:58,減速器1:55,減速器1:48,減速器1:43,減速器1:38,減速器1:33,減速器1:30,減速器1:25,減速器1:36,減速器1:31,減速器1:28,減速器1:25,減速器1:21,減速器1:19,減速器1:17,減速器1:15,減速器1:14,減速器1:12,減速器1:10,減速器1:9,減速器1:8,減速器1:7,減速器1:6,減速器1:5,減速器1:4

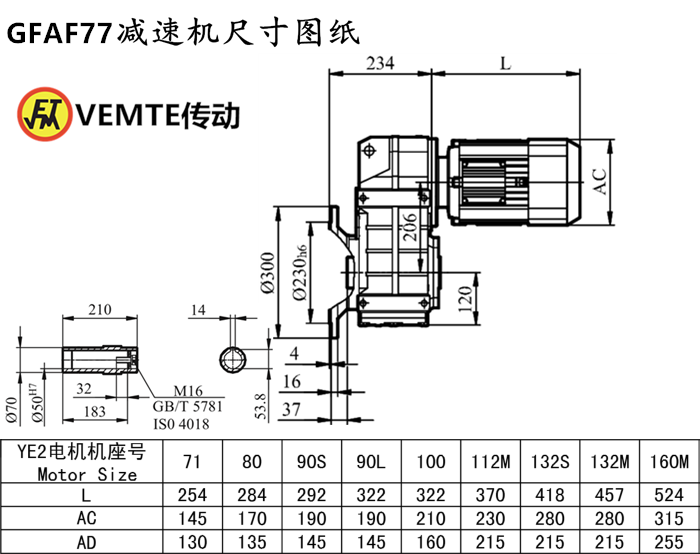

減速機FAF77安裝尺寸：輸出孔Φ53.8（可定做），高431*寬270*長234（帶法蘭）FAF系列減速電機

減速機FAF77輸出轉數：

5rpm減速器,6rpm減速器,7rpm減速器,8rpm減速器,9rpm減速器,11rpm減速器,12rpm減速器,13rpm減速器,15rpm減速器,16rpm減速器,19rpm減速器,21rpm減速器,24rpm減速器,25rpm減速器,29rpm減速器,32rpm減速器,37rpm減速器,41rpm減速器,47rpm減速器,55rpm減速器,38rpm減速器,44rpm減速器,49rpm減速器,55rpm減速器,65rpm減速器,71rpm減速器,80rpm減速器,90rpm減速器,100rpm減速器,115rpm減速器,128rpm減速器,151rpm減速器,169rpm減速器,189rpm減速器,211rpm減速器,243rpm減速器,271rpm減速器,327rpm減速器。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

GFAF系列減速器FAF77輸出扭矩：

1500Nm減速器,1450Nm減速器,1110Nm減速器,1380Nm減速器,1430Nm減速器,1080Nm減速器,1010Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大）

減速機FAF77電機型號：FAF77DRE100L4,FAF77DRE112L4,FAF77DRE132L4,FAF77DRE160L4,FAF77DRE63L4,FAF77DRE71L4,FAF77DRE80L4,FAF77DRE90L4,FAF77DRS100L4,FAF77DRS112L4,FAF77DRS132L4,FAF77DRS160L4,FAF77DRS63L4,FAF77DRS71L4,FAF77DRS80L4,FAF77DRS90L4,FAF77DT100L4,FAF77DT112L4,FAF77DT132L4,FAF77DT160L4,FAF77DT63L4,FAF77DT71L4,FAF77DT80L4,FAF77DT90L4,FAF77DV100L4,FAF77DV112L4,FAF77DV132L4,FAF77DV160L4,FAF77DV63L4,FAF77DV71L4,FAF77DV80L4,FAF77DV90L4,FAF77Y100L4,FAF77Y112L4,FAF77Y132L4,FAF77Y160L4,FAF77Y63L4,FAF77Y71L4,FAF77Y80L4,FAF77Y90L4,FAF77DRE100M4,FAF77DRE112M4,FAF77DRE132M4,FAF77DRE160M4,FAF77DRE63M4,FAF77DRE71M4,FAF77DRE80M4,FAF77DRE90M4,FAF77DRS100M4,FAF77DRS112M4,FAF77DRS132M4,FAF77DRS160M4,FAF77DRS63M4,FAF77DRS71M4,FAF77DRS80M4,FAF77DRS90M4,FAF77DT100M4,FAF77DT112M4,FAF77DT132M4,FAF77DT160M4,FAF77DT63M4,FAF77DT71M4,FAF77DT80M4,FAF77DT90M4,FAF77DV100M4,FAF77DV112M4,FAF77DV132M4,FAF77DV160M4,FAF77DV63M4,FAF77DV71M4,FAF77DV80M4,FAF77DV90M4,FAF77Y100M4,FAF77Y112M4,FAF77Y132M4,FAF77Y160M4,FAF77Y63M4,FAF77Y71M4,FAF77Y80M4,FAF77Y90M4,FAF77DRE100S4,FAF77DRE112S4,FAF77DRE132S4,FAF77DRE160S4,FAF77DRE63S4,FAF77DRE71S4,FAF77DRE80S4,FAF77DRE90S4,FAF77DRS100S4,FAF77DRS112S4,FAF77DRS132S4,FAF77DRS160S4,FAF77DRS63S4,FAF77DRS71S4,FAF77DRS80S4,FAF77DRS90S4,FAF77DT100S4,FAF77DT112S4,FAF77DT132S4,FAF77DT160S4,FAF77DT63S4,FAF77DT71S4,FAF77DT80S4,FAF77DT90S4,FAF77DV100S4,FAF77DV112S4,FAF77DV132S4,FAF77DV160S4,FAF77DV63S4,FAF77DV71S4,FAF77DV80S4,FAF77DV90S4,FAF77Y100S4,FAF77Y112S4,FAF77Y132S4,FAF77Y160S4,FAF77Y63S4,FAF77Y71S4,FAF77Y80S4,FAF77Y90S4

減速機FAF77配各種電機實物圖：

FAF77齒輪減速電機廠家生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-fafxiliejiansuji-cn.html

推薦類似型號：F77減速機
