減速機FF107電機功率：

FF107Y2.2KW,FF107Y3KW,FF107Y4KW,FF107Y5.5KW電機,FF107Y7.5KW,FF107Y11KW,FF107Y15KW,FF107Y18.5KW,FF107Y22KW,FF107Y30KW,FF107Y37KW,FF107Y45KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

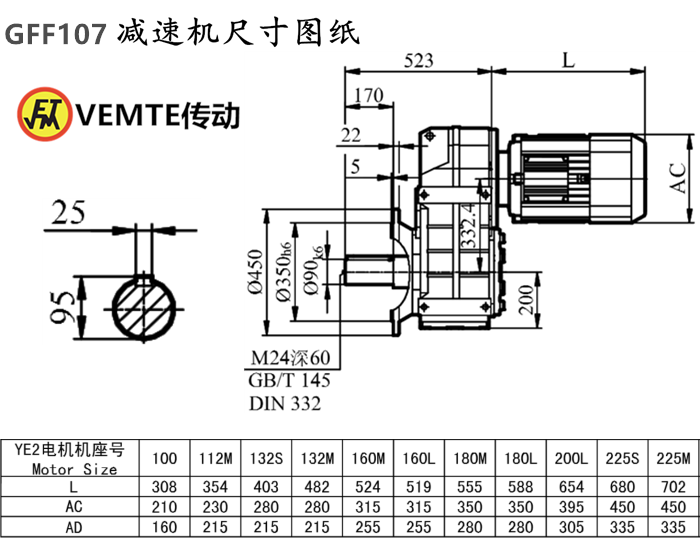

FF系列減速電機FF107安裝尺寸：輸出軸Φ90+鍵5（可定做），高717*寬450*長523（帶輸出軸）

齒輪減速機FF107減速比：

254比減速器,215比減速器,199比減速器,178比減速器,161比減速器,146比減速器,129比減速器,117比減速器,101比減速器,92比減速器,88比減速器,83比減速器,74比減速器,67比減速器,58比減速器,50比減速器,43比減速器,37比減速器,31比減速器,33比減速器,27比減速器,25比減速器,21比減速器,19比減速器,16比減速器,14比減速器,12比減速器,10比減速器,9比減速器,8比減速器,7比減速器,6比減速器,5比減速器

減速機FF107輸出轉數：平行軸減速機

減速機5.5rpm,減速機6.5rpm,減速機7rpm,減速機7.8rpm,減速機8.7rpm,減速機9.6rpm,減速機11rpm,減速機12rpm,減速機14rpm,減速機15rpm,減速機16rpm,減速機17rpm,減速機19rpm,減速機21rpm,減速機24rpm,減速機28rpm,減速機33rpm,減速機37rpm,減速機44rpm,減速機41rpm,減速機51rpm,減速機56rpm,減速機64rpm,減速機73rpm,減速機84rpm,減速機95rpm,減速機114rpm,減速機141rpm,減速機144rpm,減速機167rpm,減速機189rpm,減速機225rpm,減速機278rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

平行軸減速器FF107輸出扭矩：

7680N.m減速器,7400N.m減速器,7840N.m減速器,7000N.m減速器,6500N.m減速器,4910N.m減速器,4800N.m減速器,4600N.m減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大）

減速機FF107電機型號：FF107DRE100M4,FF107DRE112M4,FF107DRE132M4,FF107DRE160M4,FF107DRE180M4,FF107DRE200M4,FF107DRE225M4,FF107DRS100M4,FF107DRS112M4,FF107DRS132M4,FF107DRS160M4,FF107DRS180M4,FF107DRS200M4,FF107DRS225M4,FF107DT100M4,FF107DT112M4,FF107DT132M4,FF107DT160M4,FF107DT180M4,FF107DT200M4,FF107DT225M4,FF107DV100M4,FF107DV112M4,FF107DV132M4,FF107DV160M4,FF107DV180M4,FF107DV200M4,FF107DV225M4,FF107Y100M4,FF107Y112M4,FF107Y132M4,FF107Y160M4,FF107Y180M4,FF107Y200M4,FF107Y225M4,FF107DRE100L4,FF107DRE112L4,FF107DRE132L4,FF107DRE160L4,FF107DRE200L4,FF107DRE225L4,FF107DRS100L4,FF107DRS112L4,FF107DRS132L4,FF107DRS160L4,FF107DRS180L4,FF107DRS200L4,FF107DRS225L4,FF107DT100L4,FF107DT112L4,FF107DT132L4,FF107DT160L4,FF107DT180L4,FF107DT200L4,FF107DT225L4,FF107DV100L4,FF107DV112L4,FF107DV132L4,FF107DV160L4,FF107DV180L4,FF107DV200L4,FF107DV225L4,FF107Y100L4,FF107Y112L4,FF107Y132L4,FF107Y160L4,FF107Y180L4,FF107Y200L4,FF107Y225L4,FF107DRE100S4,FF107DRE112S4,FF107DRE132S4,FF107DRE160S4,FF107DRE180S4,FF107DRE200S4,FF107DRE225S4,FF107DRS100S4,FF107DRS112S4,FF107DRS132S4,FF107DRS160S4,FF107DRS180S4,FF107DRS200S4,FF107DRS225S4,FF107DT100S4,FF107DT112S4,FF107DT132S4,FF107DT160S4,FF107DT180S4,FF107DT200S4,FF107DT225S4,FF107DV100S4,FF107DV112S4,FF107DV132S4,FF107DV160S4,FF107DV180S4,FF107DV200S4,FF107DV225S4,FF107Y100S4,FF107Y112S4,FF107Y132S4,FF107Y160S4,FF107Y180S4,FF107Y200S4,FF107Y225S4

減速機FF107配各種電機的實物圖：

減速機FF107生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-ffxiliejiansuji-cn.html

推薦類似型號：FA107減速機
