KA167減速機電機功率：KA167Y0.55KW,KA167Y0.75KW,KA167Y1.1KW,KA167Y1.5KW,KA167Y2.2KW,KA167Y3KW,KA167Y4KW,KA167Y5.5KW,KA167Y7.5KW,KA167Y11KW,KA167Y15KW,KA167Y18.5KW,KA167Y22KW,KA167Y30KW,KA167Y37KW,KA167Y45KW,KA167Y55KW,KA167Y75KW,KA167Y90KW,KA167Y110KW,KA167Y132KW,KA167Y160KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KA167傘齒輪減速器減速比：

1:164.5減速器,1:134.99減速器,1:109.83減速器,1:87.86減速器,1:78.14減速器,1:68.07減速器,1:60.74減速器,1:51.77減速器,1:42.89減速器,1:36.61減速器,1:32.25減速器,1:28.77減速器,1:24.52減速器,1:20.32減速器,1:17.34減速器

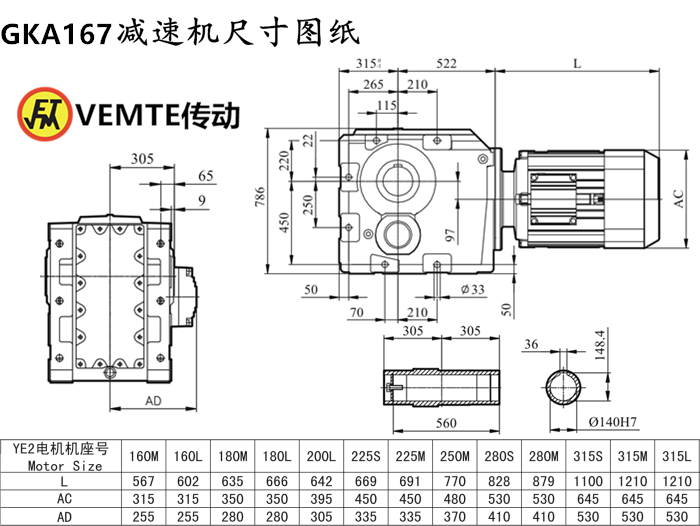

KA167減速機安裝尺寸：輸出孔+鍵Φ148.4（可定做），高786*寬580*長837

KA167減速機輸出轉數：

8.5rpm減速機,10rpm減速機,13rpm減速機,16rpm減速機,18rpm減速機,21rpm減速機,23rpm減速機,27rpm減速機,33rpm減速機,38rpm減速機,43rpm減速機,49rpm減速機,57rpm減速機,69rpm減速機,81rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KA167雙出軸減速機輸出扭矩：

32000Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

KA167減速機電機型號：直角減速機KA167DV160S4,KA167DV180S4,KA167DV200S4,KA167DV225S4,KA167DV250S4,KA167DV280S4,KA167DV315S4,KA167DT160S4,KA167DT180S4,KA167DT200S4,KA167DT225S4,KA167DT250S4,KA167DT280S4,KA167DT315S4,KA167DRS160S4,KA167DRS180S4,KA167DRS200S4,KA167DRS225S4,KA167DRS250S4,KA167DRS280S4,KA167DRS315S4,KA167DRE160S4,KA167DRE180S4,KA167DRE200S4,KA167DRE225S4,KA167DRE250S4,KA167DRE280S4,KA167DRE315S4,KA167Y160S4,KA167Y180S4,KA167Y200S4,KA167Y225S4,KA167Y250S4,KA167Y280S4,KA167Y315S4,KA167DV160M4,KA167DV180M4,KA167DV200M4,KA167DV225M4,KA167DV250M4,KA167DV280M4,KA167DV315M4,KA167DT160M4,KA167DT180M4,KA167DT200M4,KA167DT225M4,KA167DT250M4,KA167DT280M4,KA167DT315M4,KA167DRS160M4,KA167DRS180M4,KA167DRS200M4,KA167DRS225M4,KA167DRS250M4,KA167DRS280M4,KA167DRS315M4,KA167DRE160M4,KA167DRE180M4,KA167DRE200M4,KA167DRE225M4,KA167DRE250M4,KA167DRE280M4,KA167DRE315M4,KA167Y160M4,KA167Y180M4,KA167Y200M4,KA167Y225M4,KA167Y250M4,KA167Y280M4,KA167Y315M4,KA167DV160L4,KA167DV180L4,KA167DV200L4,KA167DV225L4,KA167DV250L4,KA167DV280L4,KA167DV315L4,KA167DT160L4,KA167DT180L4,KA167DT200L4,KA167DT225L4,KA167DT250L4,KA167DT280L4,KA167DT315L4,KA167DRS160L4,KA167DRS180L4,KA167DRS200L4,KA167DRS225L4,KA167DRS250L4,KA167DRS280L4,KA167DRS315L4,KA167DRE160L4,KA167DRE180L4,KA167DRE200L4,KA167DRE225L4,KA167DRE250L4,KA167DRE280L4,KA167DRE315L4,KA167Y160L4,KA167Y180L4,KA167Y200L4,KA167Y225L4,KA167Y250L4,KA167Y280L4,KA167Y315L4

KA167減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

齒輪減速箱KA167減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-kaxiliejiansuji-cn.html

推薦類似型號：減速機K167
