KAF127減速機電機功率：直角減速機

KAF127Y0.18KW,KAF127Y0.25KW,KAF127Y0.37KW,KAF127Y0.55KW,KAF127Y0.75KW,KAF127Y1.1KW,KAF127Y1.5KW,KAF127Y2.2KW,KAF127Y3KW,KAF127Y4KW,KAF127Y5.5KW,KAF127Y7.5KW,KAF127Y11KW,KAF127Y15KW,KAF127Y18.5KW,KAF127Y22KW,KAF127Y30KW,KAF127Y37KW,KAF127Y45KW,KAF127Y55KW,KAF127Y75KW,KAF127Y90KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KAF系列減速機KAF127減速機減速比：

減速箱1:146.07,減速箱1:136.14,減速箱1:122.48,減速箱1:110.18,減速箱1:89.89,減速箱1:81.98,減速箱1:70.95,減速箱1:62.60,減速箱1:54.07,減速箱1:47.82,減速箱1:40.19,減速箱1:36.25,減速箱1:31.37,減速箱1:27.68,減速箱1:23.91,減速箱1:21.15,減速箱1:17.77,減速箱1:14.35,減速箱1:12.79,減速箱1:10.74,減速箱1:8.68

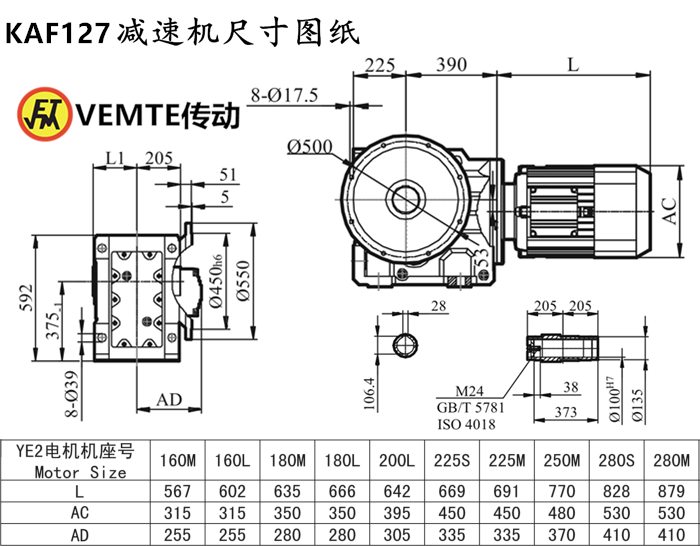

KAF127減速機安裝尺寸：輸出孔+鍵Φ106.4（可定做），高560*寬456（帶輸出法蘭）*長615

齒輪減速箱KAF127減速機輸出轉數：

9.6轉減速器,10轉減速器,11轉減速器,13轉減速器,16轉減速器,17轉減速器,20轉減速器,22轉減速器,26轉減速器,29轉減速器,35轉減速器,39轉減速器,45轉減速器,51轉減速器,59轉減速器,66轉減速器,79轉減速器,98轉減速器,109轉減速器,130轉減速器,161轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KAF127減速機輸出扭矩：

13000N.m減速機,12100N.m減速機,8530N.m減速機,8000N.m減速機,7230Nm減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

KAF127減速機電機型號：KAF127DV280S4,KAF127DV225S4,KAF127DV200S4,KAF127DV180S4,KAF127DV160S4,KAF127DV132S4,KAF127DV112S4,KAF127DT280S4,KAF127DT225S4,KAF127DT200S4,KAF127DT180S4,KAF127DT160S4,KAF127DT132S4,KAF127DT112S4,KAF127DRS280S4,KAF127DRS225S4,KAF127DRS200S4,KAF127DRS180S4,KAF127DRS160S4,KAF127DRS132S4,KAF127DRS112S4,KAF127DRE280S4,KAF127DRE225S4,KAF127DRE200S4,KAF127DRE180S4,KAF127DRE160S4,KAF127DRE132S4,KAF127DRE112S4,KAF127Y280S4,KAF127Y225S4,KAF127Y200S4,KAF127Y180S4,KAF127Y160S4,KAF127Y132S4,KAF127Y112S4,KAF127DV280M4,KAF127DV225M4,KAF127DV200M4,KAF127DV180M4,KAF127DV160M4,KAF127DV132M4,KAF127DV112M4,KAF127DT280M4,KAF127DT225M4,KAF127DT200M4,KAF127DT180M4,KAF127DT160M4,KAF127DT132M4,KAF127DT112M4,KAF127DRS280M4,KAF127DRS225M4,KAF127DRS200M4,KAF127DRS180M4,KAF127DRS160M4,KAF127DRS132M4,KAF127DRS112M4,KAF127DRE280M4,KAF127DRE225M4,KAF127DRE200M4,KAF127DRE180M4,KAF127DRE160M4,KAF127DRE132M4,KAF127DRE112M4,KAF127Y280M4,KAF127Y225M4,KAF127Y200M4,KAF127Y180M4,KAF127Y160M4,KAF127Y132M4,KAF127Y112M4,KAF127DV280L4,KAF127DV225L4,KAF127DV200L4,KAF127DV180L4,KAF127DV160L4,KAF127DV132L4,KAF127DV112L4,KAF127DT280L4,KAF127DT225L4,KAF127DT200L4,KAF127DT180L4,KAF127DT160L4,KAF127DT132L4,KAF127DT112L4,KAF127DRS280L4,KAF127DRS225L4,KAF127DRS200L4,KAF127DRS180L4,KAF127DRS160L4,KAF127DRS132L4,KAF127DRS112L4,KAF127DRE280L4,KAF127DRE225L4,KAF127DRE200L4,KAF127DRE180L4,KAF127DRE160L4,KAF127DRE132L4,KAF127DRE112L4,KAF127Y280L4,KAF127Y225L4,KAF127Y200L4,KAF127Y180L4,KAF127Y160L4,KAF127Y132L4,KAF127Y112L4

直角減速器KAF127減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KAF127減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-kafxiliejiansuji-cn.html

推薦類似型號：減速機K127
