KAF77減速機電機功率：

KAF77Y0.37KW,KAF77Y0.55KW,KAF77Y0.75KW,KAF77Y1.1KW,KAF77Y1.5KW,KAF77Y2.2KW,KAF77Y3KW,KAF77Y4KW,KAF77Y5.5KW,KAF77Y7.5KW,KAF77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。KAF系列減速機

KAF77減速機減速比：

減速箱1:192.18,減速箱1:179.37,減速箱1:154.02,減速箱1:135.28,減速箱1:128.52,減速箱1:113.56,減速箱1:97.05,減速箱1:88.97,減速箱1:78.07,減速箱1:73.99,減速箱1:64.75,減速箱1:58.34,減速箱1:51.18,減速箱1:45.16,減速箱1:40.04,減速箱1:38.39,減速箱1:35.2,減速箱1:30.89,減速箱1:29.27,減速箱1:25.62,減速箱1:23.08,減速箱1:20.25,減速箱1:17.87,減速箱1:15.84,減速箱1:13.52,減速箱1:12.36,減速箱1:10.84,減速箱1:9.56,減速箱1:8.48,減速箱1:7.24

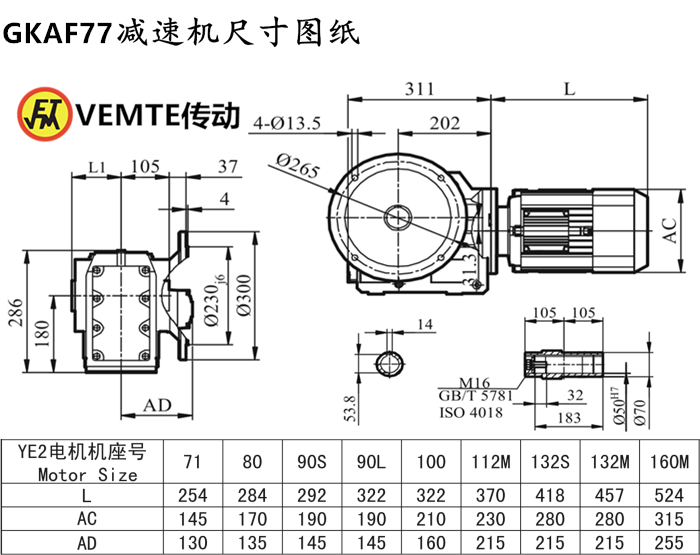

K型減速機KAF77減速機安裝尺寸：輸出孔+鍵Φ53.8（可定做），高286*寬243（帶輸出法蘭）*長312

KAF77減速機輸出轉數：

7.3轉減速器,7.8轉減速器,9.1轉減速器,10轉減速器,11轉減速器,12轉減速器,14轉減速器,16轉減速器,18轉減速器,19轉減速器,22轉減速器,24轉減速器,27轉減速器,31轉減速器,35轉減速器,36轉減速器,40轉減速器,45轉減速器,48轉減速器,55轉減速器,61轉減速器,69轉減速器,78轉減速器,88轉減速器,104轉減速器,113轉減速器,129轉減速器,146轉減速器,165轉減速器,193轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KAF77斜齒齒輪減速機輸出扭矩：

1450N.m減速機,1550N.m減速機,1340N.m減速機,1000N.m減速機,990N.m減速機,940N.m減速機,890N.m減速機,820N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

KAF77減速機電機型號：KAF77DV71S4,KAF77DV80S4,KAF77DV90S4,KAF77DV100S4,KAF77DV112S4,KAF77DV132S4,KAF77DV160S4,KAF77DT71S4,KAF77DT80S4,KAF77DT90S4,KAF77DT100S4,KAF77DT112S4,KAF77DT132S4,KAF77DT160S4,KAF77DRS71S4,KAF77DRS80S4,KAF77DRS90S4,KAF77DRS100S4,KAF77DRS112S4,KAF77DRS132S4,KAF77DRS160S4,KAF77DRE71S4,KAF77DRE80S4,KAF77DRE90S4,KAF77DRE100S4,KAF77DRE112S4,KAF77DRE132S4,KAF77DRE160S4,KAF77Y71S4,KAF77Y80S4,KAF77Y90S4,KAF77Y100S4,KAF77Y112S4,KAF77Y132S4,KAF77Y160S4,KAF77DV71M4,KAF77DV80M4,KAF77DV90M4,KAF77DV100M4,KAF77DV112M4,KAF77DV132M4,KAF77DV160M4,KAF77DT71M4,KAF77DT80M4,KAF77DT90M4,KAF77DT100M4,KAF77DT112M4,KAF77DT132M4,KAF77DT160M4,KAF77DRS71M4,KAF77DRS80M4,KAF77DRS90M4,KAF77DRS100M4,KAF77DRS112M4,KAF77DRS132M4,KAF77DRS160M4,KAF77DRE71M4,KAF77DRE80M4,KAF77DRE90M4,KAF77DRE100M4,KAF77DRE112M4,KAF77DRE132M4,KAF77DRE160M4,KAF77Y71M4,KAF77Y80M4,KAF77Y90M4,KAF77Y100M4,KAF77Y112M4,KAF77Y132M4,KAF77Y160M4,KAF77DV71L4,KAF77DV80L4,KAF77DV90L4,KAF77DV100L4,KAF77DV112L4,KAF77DV132L4,KAF77DV160L4,KAF77DT71L4,KAF77DT80L4,KAF77DT90L4,KAF77DT100L4,KAF77DT112L4,KAF77DT132L4,KAF77DT160L4,KAF77DRS71L4,KAF77DRS80L4,KAF77DRS90L4,KAF77DRS100L4,KAF77DRS112L4,KAF77DRS132L4,KAF77DRS160L4,KAF77DRE71L4,KAF77DRE80L4,KAF77DRE90L4,KAF77DRE100L4,KAF77DRE112L4,KAF77DRE132L4,KAF77DRE160L4,KAF77Y71L4,KAF77Y80L4,KAF77Y90L4,KAF77Y100L4,KAF77Y112L4,KAF77Y132L4,KAF77Y160L4

KAF77減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KAF77直角減速器生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-kafxiliejiansuji-cn.html

推薦類似型號：減速機K77
