KF77減速機電機功率：KF系列減速機

KF77Y0.37KW,KF77Y0.55KW,KF77Y0.75KW,KF77Y1.1KW,KF77Y1.5KW,KF77Y2.2KW,KF77Y3KW,KF77Y4KW,KF77Y5.5KW,KF77Y7.5KW,KF77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KF77減速機減速比：

192.18比減速機,179.37比減速機,154.02比減速機,135.28比減速機,128.52比減速機,113.56比減速機,97.05比減速機,88.97比減速機,78.07比減速機,73.99比減速機,64.75比減速機,58.34比減速機,51.18比減速機,45.16比減速機,40.04比減速機,38.39比減速機,35.2比減速機,30.89比減速機,29.27比減速機,25.62比減速機,23.08比減速機,20.25比減速機,17.87比減速機,15.84比減速機,13.52比減速機,12.36比減速機,10.84比減速機,9.56比減速機,8.48比減速機,7.24比直角減速機

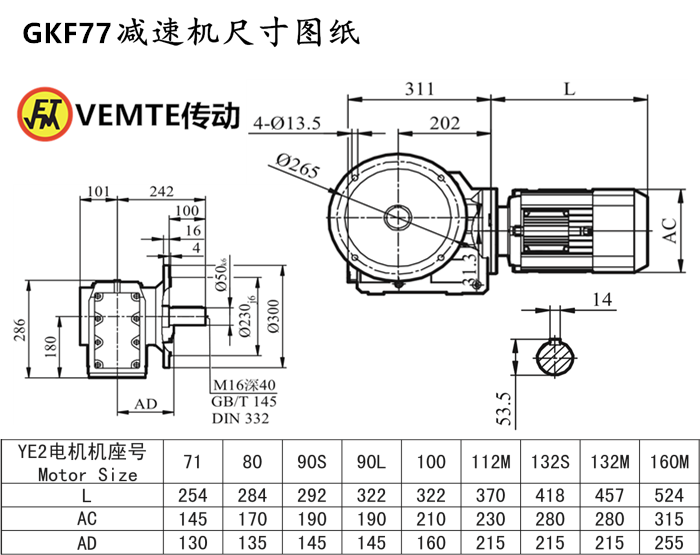

KF77減速機安裝尺寸：輸出軸+鍵Φ53.5（可定做），高288*寬343（帶輸出軸）*長314

KF77減速箱輸出轉數：

7.3轉減速箱,7.8轉減速箱,9.1轉減速箱,10轉減速箱,11轉減速箱,12轉減速箱,14轉減速箱,16轉減速箱,18轉減速箱,19轉減速箱,22轉減速箱,24轉減速箱,27轉減速箱,31轉減速箱,35轉減速箱,36轉減速箱,40轉減速箱,45轉減速箱,48轉減速箱,55轉減速箱,61轉減速箱,69轉減速箱,78轉減速箱,88轉減速箱,104轉減速箱,113轉減速箱,129轉減速箱,146轉減速箱,165轉減速箱,193轉錐齒輪電機減速機。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KF77減速機輸出扭矩：

1450Nm減速器,1550Nm減速器,1340Nm減速器,1000Nm減速器,990Nm減速器,940Nm減速器,890Nm減速器,820Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

KF77減速機電機型號：KF77DV71S4,KF77DV80S4,KF77DV90S4,KF77DV100S4,KF77DV112S4,KF77DV132S4,KF77DV160S4,KF77DT71S4,KF77DT80S4,KF77DT90S4,KF77DT100S4,KF77DT112S4,KF77DT132S4,KF77DT160S4,KF77DRS71S4,KF77DRS80S4,KF77DRS90S4,KF77DRS100S4,KF77DRS112S4,KF77DRS132S4,KF77DRS160S4,KF77DRE71S4,KF77DRE80S4,KF77DRE90S4,KF77DRE100S4,KF77DRE112S4,KF77DRE132S4,KF77DRE160S4,KF77Y71S4,KF77Y80S4,KF77Y90S4,KF77Y100S4,KF77Y112S4,KF77Y132S4,KF77Y160S4,KF77DV71M4,KF77DV80M4,KF77DV90M4,KF77DV100M4,KF77DV112M4,KF77DV132M4,KF77DV160M4,KF77DT71M4,KF77DT80M4,KF77DT90M4,KF77DT100M4,KF77DT112M4,KF77DT132M4,KF77DT160M4,KF77DRS71M4,KF77DRS80M4,KF77DRS90M4,KF77DRS100M4,KF77DRS112M4,KF77DRS132M4,KF77DRS160M4,KF77DRE71M4,KF77DRE80M4,KF77DRE90M4,KF77DRE100M4,KF77DRE112M4,KF77DRE132M4,KF77DRE160M4,KF77Y71M4,KF77Y80M4,KF77Y90M4,KF77Y100M4,KF77Y112M4,KF77Y132M4,KF77Y160M4,KF77DV71L4,KF77DV80L4,KF77DV90L4,KF77DV100L4,KF77DV112L4,KF77DV132L4,KF77DV160L4,KF77DT71L4,KF77DT80L4,KF77DT90L4,KF77DT100L4,KF77DT112L4,KF77DT132L4,KF77DT160L4,KF77DRS71L4,KF77DRS80L4,KF77DRS90L4,KF77DRS100L4,KF77DRS112L4,KF77DRS132L4,KF77DRS160L4,KF77DRE71L4,KF77DRE80L4,KF77DRE90L4,KF77DRE100L4,KF77DRE112L4,KF77DRE132L4,KF77DRE160L4,KF77Y71L4,KF77Y80L4,KF77Y90L4,KF77Y100L4,KF77Y112L4,KF77Y132L4,KF77Y160L4

KF77減速機搭配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

伺服直角減速機KF77減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-kfxiliejiansuji-cn.html

推薦類似型號：減速機KA77
