齒輪減速器RF97電機功率：

RF97Y0.55KW,RF97Y0.75KW,RF97Y1.1KW,RF97Y1.5KW,RF97Y2.2KW,RF97Y3KW,RF97Y4KW,RF97Y5.5KW,RF97Y7.5KW,RF97Y11KW,RF97Y15KW,RF97Y18.5KW,RF97Y22KW,RF97Y30KW,RF97Y37KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

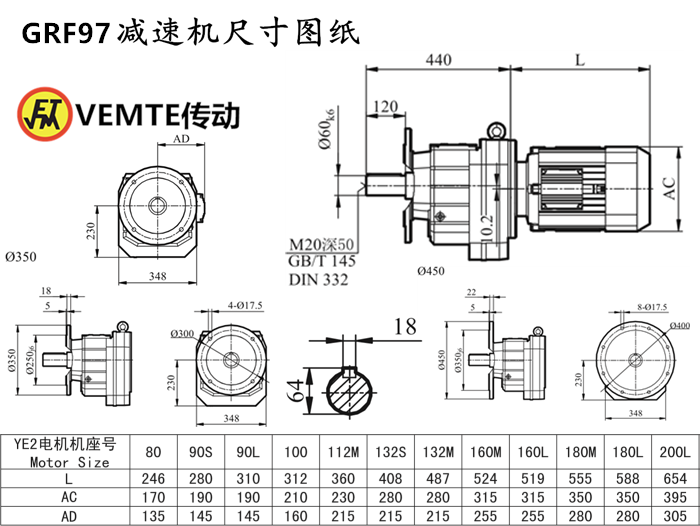

RF97減速機安裝尺寸：輸出軸Φ60+鍵4（可定做），高368*寬348*長440（帶輸出軸）

RF97同軸減速器減速比：

4.5比減速機,5.2比減速機,6.21比減速機,7.12比減速機,8.39比減速機,9.29比減速機,10.83比減速機,13.39比減速機,14.62比減速機,16.17比減速機,18.24比減速機,20.14比減速機,22.37比減速機,25.03比減速機,27.19比減速機,27.58比減速機,32.05比減速機,33.25比減速機,37.13比減速機,42.78比減速機,47.58比減速機,53.21比減速機,59.92比減速機,65.21比減速機,72.17比減速機,83.15比減速機,92.48比減速機,103.44比減速機,116.48比減速機,126.75比減速機,150.78比減速機,170.02比減速機,186.3比減速機,216.28比減速機,241.25比減速機,255.71比減速機,289.74比減速機

RF97減速箱輸出轉數：

4.8轉減速箱,5.5轉減速箱,5.8轉減速箱,6.5轉減速箱,7.5轉減速箱,8.2轉減速箱,9.3轉減速箱,11轉減速箱,12轉減速箱,14轉減速箱,15轉減速箱,17轉減速箱,19轉減速箱,21轉減速箱,23轉減速箱,26轉減速箱,29轉減速箱,33轉減速箱,38轉減速箱,42轉減速箱,44轉減速箱,51轉減速箱,56轉減速箱,63轉減速箱,70轉減速箱,77轉減速箱,87轉減速箱,96轉減速箱,113轉減速箱,129轉減速箱,151轉減速箱,167轉減速箱,197轉減速箱,225轉減速箱,269轉減速箱,311轉減速箱。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF系列減速電機RF97輸出扭矩：

1630Nm減速器,1780Nm減速器,1890Nm減速器,2000Nm減速器,2030Nm減速器,2090Nm減速器,2190Nm減速器,2300Nm減速器,2400Nm減速器,2500Nm減速器,2560Nm減速器,2610Nm減速器,2670Nm減速器,2720Nm減速器,2830Nm減速器,2890Nm減速器,3000Nm減速器,。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

RF97減速機電機型號：RF97DV80S4,RF97DV90S4,RF97DV100S4,RF97DV112S4,RF97DV132S4,RF97DV160S4,RF97DV180S4,RF97DV200S4,RF97DT80S4,RF97DT90S4,RF97DT100S4,RF97DT112S4,RF97DT132S4,RF97DT160S4,RF97DT180S4,RF97DT200S4,RF97DRS80S4,RF97DRS90S4,RF97DRS100S4,RF97DRS112S4,RF97DRS132S4,RF97DRS160S4,RF97DRS180S4,RF97DRS200S4,RF97DRE80S4,RF97DRE90S4,RF97DRE100S4,RF97DRE112S4,RF97DRE132S4,RF97DRE160S4,RF97DRE180S4,RF97DRE200S4,RF97Y80S4,RF97Y90S4,RF97Y100S4,RF97Y112S4,RF97Y132S4,RF97Y160S4,RF97Y180S4,RF97Y200S4,RF97Y225S4,RF97DV80M4,RF97DV90M4,RF97DV100M4,RF97DV112M4,RF97DV132M4,RF97DV160M4,RF97DV180M4,RF97DV200M4,RF97DT80M4,RF97DT90M4,RF97DT100M4,RF97DT112M4,RF97DT132M4,RF97DT160M4,RF97DT180M4,RF97DT200M4,RF97DRS80M4,RF97DRS90M4,RF97DRS100M4,RF97DRS112M4,RF97DRS132M4,RF97DRS160M4,RF97DRS180M4,RF97DRS200M4,RF97DRE80M4,RF97DRE90M4,RF97DRE100M4,RF97DRE112M4,RF97DRE132M4,RF97DRE160M4,RF97DRE180M4,RF97DRE200M4,RF97Y80M4,RF97Y90M4,RF97Y100M4,RF97Y112M4,RF97Y132M4,RF97Y160M4,RF97Y180M4,RF97Y200M4,RF97Y225M4,RF97DV80L4,RF97DV90L4,RF97DV100L4,RF97DV112L4,RF97DV132L4,RF97DV160L4,RF97DV180L4,RF97DV200L4,RF97DT80L4,RF97DT90L4,RF97DT100L4,RF97DT112L4,RF97DT132L4,RF97DT160L4,RF97DT180L4,RF97DT200L4,RF97DRS80L4,RF97DRS90L4,RF97DRS100L4,RF97DRS112L4,RF97DRS132L4,RF97DRS160L4,RF97DRS180L4,RF97DRS200L4,RF97DRE80L4,RF97DRE90L4,RF97DRE100L4,RF97DRE112L4,RF97DRE132L4,RF97DRE160L4,RF97DRE180L4,RF97DRE200L4,RF97Y80L4,RF97Y90L4,RF97Y100L4,RF97Y112L4,RF97Y132L4,RF97Y160L4,RF97Y180L4,RF97Y200L4,RF97Y225L4

RF97減速機搭配各種電機實物圖：

RF97減速機工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-rfxiliejiansuji-cn.html

推薦類似型號：減速機RXF77
