RXF87減速機詳細信息
RXF87減速機
RXF87減速機電機功率:
RXF87Y3KW,RXF87Y4KW,RXF87Y5.5KW,RXF87Y7.5KW,RXF87Y11KW,RXF87Y15KW,RXF87Y18.5KW,RXF87Y22KW。(可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機)。
RXF87齒輪減速器減速比:
減速箱1:1.39,減速箱1:1.6,減速箱1:1.93,減速箱1:2.15,減速箱1:2.48,減速箱1:2.76,減速箱1:3.09,減速箱1:3.48,減速箱1:3.78,減速箱1:4.5,減速箱1:5.07,減速箱1:5.56,減速箱1:6.45,減速箱1:7.2,減速箱1:7.63,減速箱1:8.65

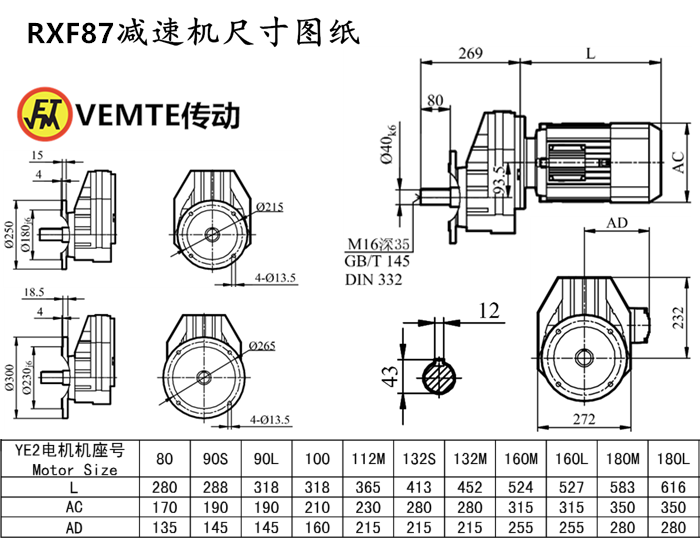

RXF87減速機安裝尺寸:輸出軸Φ40+鍵3(可定做),高332*寬272*長269(帶輸出軸)
RXF87減速機輸出轉數(shù):
162轉減速器,183轉減速器,194轉減速器,217轉減速器,252轉減速器,276轉減速器,311轉減速器,370轉減速器,402轉減速器,453轉減速器,507轉減速器,565轉減速器,651轉減速器,725轉減速器,875轉減速器,1005轉減速器,。(以上轉數(shù)均為四級電機算出的,可用兩級電機,六級電機計算,也可以用變頻電機調速)
RXF87同軸減速器輸出扭矩:
49N.m減速機,139N.m減速機,140N.m減速機,192N.m減速機,225N.m減速機,250N.m減速機,290N.m減速機,290N.m減速機,305N.m減速機,315N.m減速機,355N.m減速機,385N.m減速機,405N.m減速機,。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速器型號加大,或者兩個減速機組合使用)
RXF87減速機電機型號:RXF87DV71S4,RXF87DV80S4,RXF87DV90S4,RXF87DV100S4,RXF87DV112S4,RXF87DV132S4,RXF87DV160S4,RXF87DV180S4,RXF87DV200S4,RXF87DT71S4,RXF87DT80S4,RXF87DT90S4,RXF87DT100S4,RXF87DT112S4,RXF87DT132S4,RXF87DT160S4,RXF87DT180S4,RXF87DT200S4,RXF87DRS71S4,RXF87DRS80S4,RXF87DRS90S4,RXF87DRS100S4,RXF87DRS112S4,RXF87DRS132S4,RXF87DRS160S4,RXF87DRS180S4,RXF87DRS200S4,RXF87DRE71S4,RXF87DRE80S4,RXF87DRE90S4,RXF87DRE100S4,RXF87DRE112S4,RXF87DRE132S4,RXF87DRE160S4,RXF87DRE180S4,RXF87DRE200S4,RXF87Y71S4,RXF87Y80S4,RXF87Y90S4,RXF87Y100S4,RXF87Y112S4,RXF87Y132S4,RXF87Y160S4,RXF87Y180S4,RXF87Y200S4,RXF87DV71M4,RXF87DV80M4,RXF87DV90M4,RXF87DV100M4,RXF87DV112M4,RXF87DV132M4,RXF87DV160M4,RXF87DV180M4,RXF87DV200M4,RXF87DT71M4,RXF87DT80M4,RXF87DT90M4,RXF87DT100M4,RXF87DT112M4,RXF87DT132M4,RXF87DT160M4,RXF87DT180M4,RXF87DT200M4,RXF87DRS71M4,RXF87DRS80M4,RXF87DRS90M4,RXF87DRS100M4,RXF87DRS112M4,RXF87DRS132M4,RXF87DRS160M4,RXF87DRS180M4,RXF87DRS200M4,RXF87DRE71M4,RXF87DRE80M4,RXF87DRE90M4,RXF87DRE100M4,RXF87DRE112M4,RXF87DRE132M4,RXF87DRE160M4,RXF87DRE180M4,RXF87DRE200M4,RXF87Y71M4,RXF87Y80M4,RXF87Y90M4,RXF87Y100M4,RXF87Y112M4,RXF87Y132M4,RXF87Y160M4,RXF87Y180M4,RXF87Y200M4,RXF87DV71L4,RXF87DV80L4,RXF87DV90L4,RXF87DV100L4,RXF87DV112L4,RXF87DV132L4,RXF87DV160L4,RXF87DV180L4,RXF87DV200L4,RXF87DT71L4,RXF87DT80L4,RXF87DT90L4,RXF87DT100L4,RXF87DT112L4,RXF87DT132L4,RXF87DT160L4,RXF87DT180L4,RXF87DT200L4,RXF87DRS71L4,RXF87DRS80L4,RXF87DRS90L4,RXF87DRS100L4,RXF87DRS112L4,RXF87DRS132L4,RXF87DRS160L4,RXF87DRS180L4,RXF87DRS200L4,RXF87DRE71L4,RXF87DRE80L4,RXF87DRE90L4,RXF87DRE100L4,RXF87DRE112L4,RXF87DRE132L4,RXF87DRE160L4,RXF87DRE180L4,RXF87DRE200L4,RXF87Y71L4,RXF87Y80L4,RXF87Y90L4,RXF87Y100L4,RXF87Y112L4,RXF87Y132L4,RXF87Y160L4,RXF87Y180L4,RXF87Y200L4,
RXF系列減速機RXF87配各種電機實物圖:
RXF87減速機生產工廠展示:看廠請聯(lián)系微信13826972124,獲取位置,需提前一天預約http://jxtxfw.cn/product/list-rxfxiliejiansuji-cn.html
推薦類似型號:減速機R27
關鍵詞:硬齒面減速機_RXF系列減速機_GRXF向齒輪減速器_三相齒輪減速電機_RXF型減速馬達
RXF系列齒輪減速機型號:RXF57減速機,RXF67減速機,RXF77減速機,RXF87減速機,RXF97減速機,RXF107減速機
RXF系列同軸斜齒輪減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-45KW之間
如需工程師幫選型,請加微信13826972124,留言告知工程師參數(shù)要求
標簽:  RXF87齒輪減速器 RXF87減速機 減速電機RXF87 RXF87減速機尺寸圖紙 GRXF87減速機尺寸圖紙
