SA87渦輪減速電機功率：SA87Y0.12KW,SA87Y0.18KW,SA87Y0.25KW,SA87Y0.37KW,SA87Y0.55KW,SA87Y0.75KW,SA87Y1.1KW,SA87Y1.5KW,SA87Y2.2KW,SA87Y3KW,SA87Y4KW,SA87Y5.5KW,SA87Y7.5KW,SA87Y11KW,SA87Y15KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

SA87減速機減速比：1：288減速器,1:258.18減速器,1:222.4減速器,1:202.96減速器,1:180減速器,1:151.3減速器,1:139.05減速器,1:123.48減速器,1:110.4減速器,1:99.26減速器,1:91.2減速器,1:86.15減速器,1:81.76減速器,1:77.14減速器,1:70.43減速器,1:64.27減速器,1:64減速器,1:57減速器,1:47.91減速器,1:44.03減速器,1:39.1減速器,1:34.96減速器,1:31.43減速器,1:27.28減速器,1:25.5減速器,1:24.43減速器,1:21.43減速器,1:20.27減速器,1:19.7減速器,1:17.49減速器,1:15.64減速器,1:14.06減速器,1:12.21減速器,1:10.93減速器,1:9.07減速器,1:7.88渦輪伺服減速器

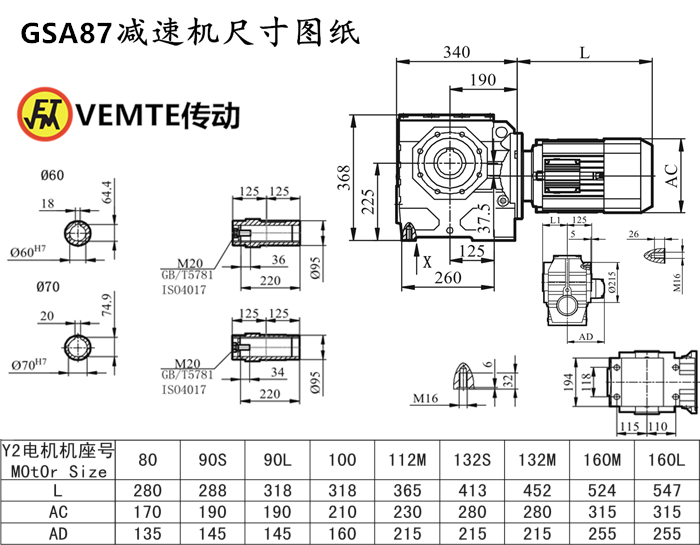

SA87減速機安裝尺寸：輸出孔+鍵Φ74.4（可定做），高368*寬250*長340

SA87減速機輸出轉數：4.9rpm減速機,5.4rpm減速機,6.3rpm減速機,6.9rpm減速機,7.8rpm減速機,9.3rpm減速機,10rpm減速機,11rpm減速機,14rpm減速機,15rpm減速機,16rpm減速機,17rpm減速機,18rpm減速機,20rpm減速機,22rpm減速機,25rpm減速機,29rpm減速機,32rpm減速機,36rpm減速機,40rpm減速機,45rpm減速機,51rpm減速機,55rpm減速機,57rpm減速機,65rpm減速機,69rpm減速機,71rpm減速機,80rpm減速機,90rpm減速機,100rpm減速機,115rpm減速機,128rpm減速機,154rpm減速機,178rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

SA系列減速器SA87輸出扭矩：減速箱2280Nm,減速箱2260Nm,減速箱2210Nm,減速箱2150Nm,減速箱2100Nm,減速箱2060Nm,減速箱2000Nm,減速箱1960Nm,減速箱1510Nm,減速箱1880Nm,減速箱1600Nm,減速箱1820Nm,減速箱1700Nm,減速箱1240Nm,減速箱1140Nm,減速箱1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

SA87減速機電機型號：SA87DV71S4,SA87DV80S4,SA87DV90S4,SA87DV100S4,SA87DV112S4,SA87DV132S4,SA87DV160S4,SA87DT71S4,SA87DT80S4,SA87DT90S4,SA87DT100S4,SA87DT112S4,SA87DT132S4,SA87DT160S4,SA87DRE71S4,SA87DRE80S4,SA87DRE90S4,SA87DRE100S4,SA87DRE112S4,SA87DRE132S4,SA87DRE160S4,SA87DRS71S4,SA87DRS80S4,SA87DRS90S4,SA87DRS100S4,SA87DRS112S4,SA87DRS132S4,SA87DRS160S4,SA87Y71S4,SA87Y80S4,SA87Y90S4,SA87Y100S4,SA87Y112S4,SA87Y132S4,SA87Y160S4,SA87DV71M4,SA87DV80M4,SA87DV90M4,SA87DV100M4,SA87DV112M4,SA87DV132M4,SA87DV160M4,SA87DT71M4,SA87DT80M4,SA87DT90M4,SA87DT100M4,SA87DT112M4,SA87DT132M4,SA87DT160M4,SA87DRE71M4,SA87DRE80M4,SA87DRE90M4,SA87DRE100M4,SA87DRE112M4,SA87DRE132M4,SA87DRE160M4,SA87DRS71M4,SA87DRS80M4,SA87DRS90M4,SA87DRS100M4,SA87DRS112M4,SA87DRS132M4,SA87DRS160M4,SA87Y71M4,SA87Y80M4,SA87Y90M4,SA87Y100M4,SA87Y112M4,SA87Y132M4,SA87Y160M4,SA87DV71L4,SA87DV80L4,SA87DV90L4,SA87DV100L4,SA87DV112L4,SA87DV132L4,SA87DV160L4,SA87DT71L4,SA87DT80L4,SA87DT90L4,SA87DT100L4,SA87DT112L4,SA87DT132L4,SA87DT160L4,SA87DRE71L4,SA87DRE80L4,SA87DRE90L4,SA87DRE100L4,SA87DRE112L4,SA87DRE132L4,SA87DRE160L4,SA87DRS71L4,SA87DRS80L4,SA87DRS90L4,SA87DRS100L4,SA87DRS112L4,SA87DRS132L4,SA87DRS160L4,SA87Y71L4,SA87Y80L4,SA87Y90L4,SA87Y100L4,SA87Y112L4,SA87Y132L4,SA87Y160L4

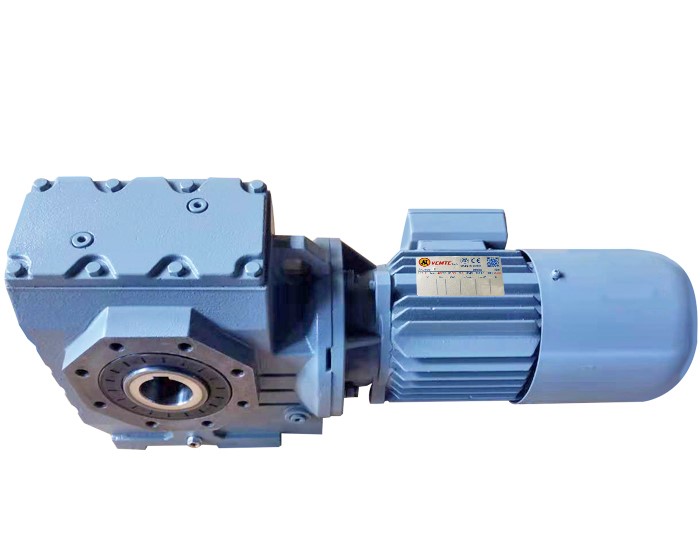

SA87減速機配各種電機實物圖：

SA87減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-saxiliejiansuji-cn.html

推薦類似型號：減速機SAF87
