KA157R107減速機詳細信息
KA157R107減速機
KA157R107減速器電機功率:KA157R107Y15KW減速器,KA157R107Y18.5KW減速器,KA157R107Y22KW減速器(可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機)。直角減速機
KA157R107減速電機減速比:1:107減速電機,1:122減速電機,1:157減速電機,1:187減速電機,1:213減速電機,1:230減速電機。

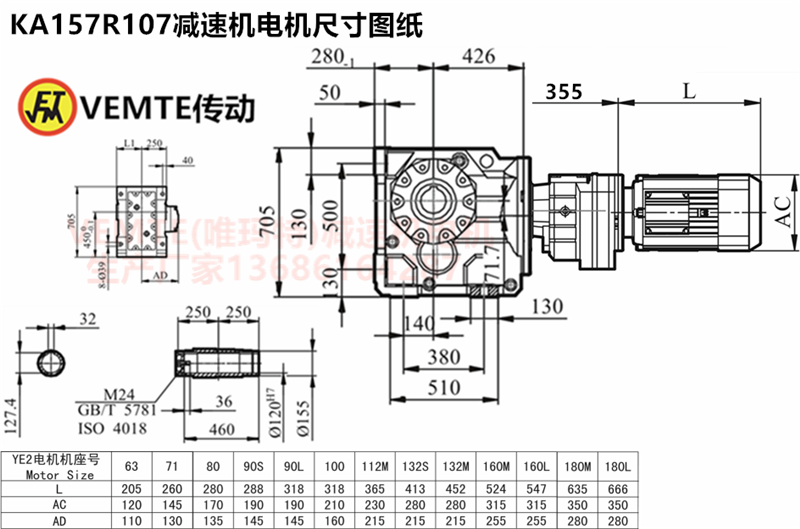

KA157R107減速機電機安裝尺寸:輸出孔+鍵Φ127.4(可定做),高705*寬500*長1061傘齒輪減速機
KA157R107減速箱輸出轉數:6.4rpm/min減速箱,6.9rpm/min減速箱,7.8rpm/min減速箱,9.3rpm/min減速箱,9.4rpm/min減速箱,12rpm/min減速箱,14rpm/min減速箱。轉角減速電機
KA157R107減速馬達電機輸出扭矩:9670Nm減速馬達,11000Nm減速馬達,11900Nm減速馬達,13700Nm減速馬達,14100Nm減速馬達,16200Nm減速馬達,16600Nm減速馬達,17500Nm減速馬達,19300Nm減速馬達,20500Nm減速馬達,20600Nm減速馬達,20700Nm減速馬達。通孔減速機
KA157R107減速機電機各種輸出實物圖:
KA157R107減速機型號:KA157R107Y180S4減速機,KA157R107Y180M4減速機,KA157R107Y180L4減速機,KA157R107Y160S4減速機,KA157R107Y160M4減速機,KA157R107Y160L4減速機,KA157R107DV180S4減速機,KA157R107DV180M4減速機,KA157R107DV180L4減速機,KA157R107DV160S4減速機,KA157R107DV160M4減速機,KA157R107DV160L4減速機,KA157R107DT180S4減速機,KA157R107DT180M4減速機,KA157R107DT180L4減速機,KA157R107DT160S4減速機,KA157R107DT160M4減速機,KA157R107DT160L4減速機,KA157R107DRS180S4減速機,KA157R107DRS180M4減速機,KA157R107DRS180L4減速機,KA157R107DRS160S4減速機,KA157R107DRS160M4減速機,KA157R107DRS160L4減速機,KA157R107DRE180S4減速機,KA157R107DRE180M4減速機,KA157R107DRE180L4減速機,KA157R107DRE160S4減速機,KA157R107DRE160M4減速機,KA157R107DRE160L4減速機,KA157R107DM180S4減速機,KA157R107DM180M4減速機,KA157R107DM180L4減速機,KA157R107DM160S4減速機,KA157R107DM160M4減速機,KA157R107DM160L4減速機。
KA157R107減速電機生產廠家展示:看廠請聯系微信13826972124,獲取位置,需提前一天預約http://jxtxfw.cn/product/list-kaxiliejiansuji-cn.html
關鍵詞:空心軸減速機_直角中空減速機_中孔輸出減速機_通孔減速電機_KA系列減速機
KA系列齒輪減速機型號:KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13826972124,留言告知工程師參數要求
標簽:   KA157R107DV180M4減速器 KA157RF107DT160S4 GKA157GR107DRS180M4 GKA157GRF107Y160L4減速機電機生產廠家
