R17齒輪減速電機功率：R17Y0.18KW,R17Y0.25KW,R17Y0.37KW,R17Y0.55KW,R17Y0.75KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

R17減速機減速比：81.64比減速器,70.39比減速器,65.61比減速器,57.35比減速器,53.76比減速器,47.44比減速器,44.18比減速器,38.61比減速器,36.2比減速器,31.94比減速器,28.32比減速器,24.07比減速器,25.23比減速器,23.15比減速器,19.71比減速器,16.99比減速器,15.84比減速器,13.84比減速器,12.98比減速器,11.45比減速器,10.15比減速器,8.63比減速器,7.55比減速器,7.04比減速器,6.15比減速器,5.76比減速器,5.09比減速器,4.51比減速器,3.83比減速器

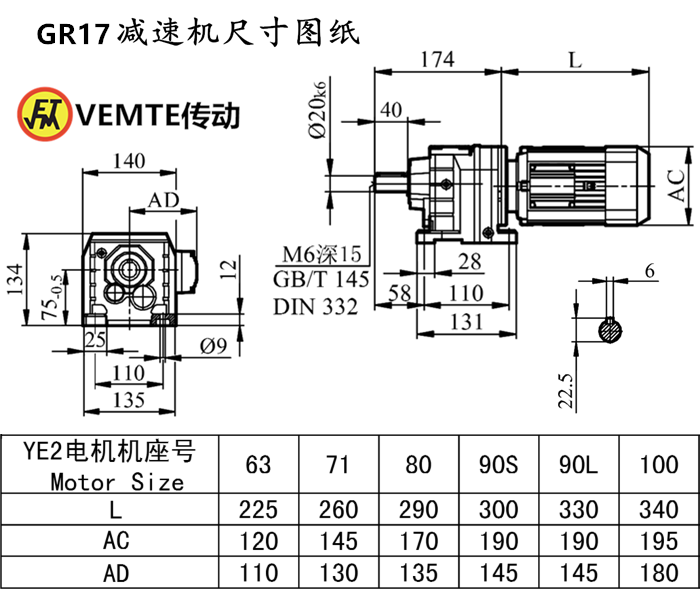

R系列減速機R17減速機安裝尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）

R17減速機輸出轉數：17轉減速機,20轉減速機,21轉減速機,24轉減速機,26轉減速機,30轉減速機,32轉減速機,36轉減速機,39轉減速機,44轉減速機,49轉減速機,58轉減速機,55轉減速機,60轉減速機,71轉減速機,82轉減速機,88轉減速機,101轉減速機,108轉減速機,122轉減速機,138轉減速機,162轉減速機,185轉減速機,199轉減速機,228轉減速機,243轉減速機,275轉減速機,310轉減速機,366轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R17減速機輸出扭矩：減速箱85N.m,減速箱81N.m,減速箱77N.m,減速箱82N.m,減速箱56N.m,減速箱55N.m,減速箱54N.m,減速箱53N.m,減速箱51N.m,減速箱48N.m,減速箱45N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R17同軸減速機電機型號

R17DV63S4,R17DV71S4,R17DV80S4,R17DT63S4,R17DT71S4,R17DT80S4,R17DRS63S4,R17DRS71S4,R17DRS80S4,R17DRE63S4,R17DRE71S4,R17DRE80S4,R17Y63S4,R17Y71S4,R17Y80S4,R17DV63M4,R17DV71M4,R17DV80M4,R17DT63M4,R17DT71M4,R17DT80M4,R17DRS63M4,R17DRS71M4,R17DRS80M4,R17DRE63M4,R17DRE71M4,R17DRE80M4,R17Y63M4,R17Y71M4,R17Y80M4,R17DV63L4,R17DV71L4,R17DV80L4,R17DT63L4,R17DT71L4,R17DT80L4,R17DRS63L4,R17DRS71L4,R17DRS80L4,R17DRE63L4,R17DRE71L4,R17DRE80L4,R17Y63L4,R17Y71L4,R17Y80L4,

R17減速機配各種電機的實物圖：

R17減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：減速機RF17
