減速機R107電機功率：R系列減速機

R107Y1.5KW,R107Y2.2KW,R107Y3KW,R107Y4KW,R107Y5.5KW,R107Y7.5KW,R107Y11KW,R107Y15KW,R107Y18.5KW,R107Y22KW,R107Y30KW,R107Y37KW,R107Y45KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

齒輪減速器R107減速比：

減速器1:4.92,減速器1:5.82,減速器1:6.66,減速器1:7.86,減速器1:8.56,減速器1:10.13,減速器1:11.59,減速器1:13.66,減速器1:15.65,減速器1:18.21,減速器1:20.07,減速器1:22.62,減速器1:24.9,減速器1:27.58,減速器1:29.49,減速器1:30.77,減速器1:35.26,減速器1:40.37,減速器1:47.63,減速器1:52.68,減速器1:59.41,減速器1:65.6,減速器1:72.88,減速器1:78.57,減速器1:92.7,減速器1:102.53,減速器1:115.63,減速器1:127.68,減速器1:141.83,減速器1:158.68,減速器1:172.34,減速器1:203.16,減速器1:229.95,減速器1:251.15,

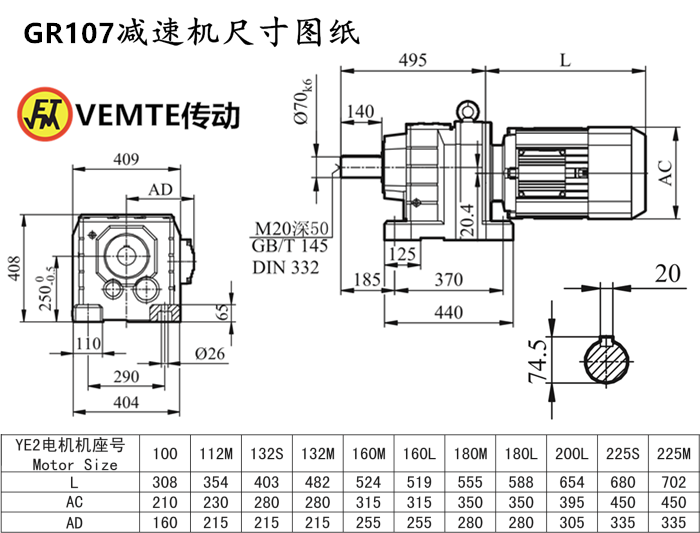

減速機R107安裝尺寸：輸出軸Φ70+鍵4.5（可定做），高408*寬404*長495（帶輸出軸）

減速機R107輸出轉數(shù)：

45.6rpm/min減速機,6.1rpm/min減速機,6.9rpm/min減速機,8.1rpm/min減速機,8.8rpm/min減速機,9.9rpm/min減速機,11rpm/min減速機,12rpm/min減速機,14rpm/min減速機,15rpm/min減速機,18rpm/min減速機,19rpm/min減速機,21rpm/min減速機,24rpm/min減速機,27rpm/min減速機,29rpm/min減速機,35rpm/min減速機,40rpm/min減速機,45rpm/min減速機,47rpm/min減速機,51rpm/min減速機,56rpm/min減速機,62rpm/min減速機,70rpm/min減速機,77rpm/min減速機,89rpm/min減速機,102rpm/min減速機,121rpm/min減速機,138rpm/min減速機,164rpm/min減速機,178rpm/min減速機,210rpm/min減速機,241rpm/min減速機,285rpm/min同軸減速器。（以上rpm/min數(shù)均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機R107輸出扭矩：

4300N.m減速箱,2970N.m減速箱,2900N.m減速箱（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

減速機R107電機型號：R107DV90S4,R107DV100S4,R107DV112S4,R107DV132S4,R107DV160S4,R107DV180S4,R107DV200S4,R107DV225S4,R107DT90S4,R107DT100S4,R107DT112S4,R107DT132S4,R107DT160S4,R107DT180S4,R107DT200S4,R107DT225S4,R107DRS90S4,R107DRS100S4,R107DRS112S4,R107DRS132S4,R107DRS160S4,R107DRS180S4,R107DRS200S4,R107DRS225S4,R107DRE90S4,R107DRE100S4,R107DRE112S4,R107DRE132S4,R107DRE160S4,R107DRE180S4,R107DRE200S4,R107DRE225S4,R107Y90S4,R107Y100S4,R107Y112S4,R107Y132S4,R107Y160S4,R107Y180S4,R107Y200S4,R107Y225S4,R107DV90M4,R107DV100M4,R107DV112M4,R107DV132M4,R107DV160M4,R107DV180M4,R107DV200M4,R107DV225M4,R107DT90M4,R107DT100M4,R107DT112M4,R107DT132M4,R107DT160M4,R107DT180M4,R107DT200M4,R107DT225M4,R107DRS90M4,R107DRS100M4,R107DRS112M4,R107DRS132M4,R107DRS160M4,R107DRS180M4,R107DRS200M4,R107DRS225M4,R107DRE90M4,R107DRE100M4,R107DRE112M4,R107DRE132M4,R107DRE160M4,R107DRE180M4,R107DRE200M4,R107DRE225M4,R107Y90M4,R107Y100M4,R107Y112M4,R107Y132M4,R107Y160M4,R107Y180M4,R107Y200M4,R107Y225M4,R107DV90L4,R107DV100L4,R107DV112L4,R107DV132L4,R107DV160L4,R107DV180L4,R107DV200L4,R107DV225L4,R107DT90L4,R107DT100L4,R107DT112L4,R107DT132L4,R107DT160L4,R107DT180L4,R107DT200L4,R107DT225L4,R107DRS90L4,R107DRS100L4,R107DRS112L4,R107DRS132L4,R107DRS160L4,R107DRS180L4,R107DRS200L4,R107DRS225L4,R107DRE90L4,R107DRE100L4,R107DRE112L4,R107DRE132L4,R107DRE160L4,R107DRE180L4,R107DRE200L4,R107DRE225L4,R107Y90L4,R107Y100L4,R107Y112L4,R107Y132L4,R107Y160L4,R107Y180L4,R107Y200L4,R107Y225L4同向減速機

減速機R107配各種電機的實物圖：

減速機R107生產工廠展示：看廠請聯(lián)系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：RF107減速機
