R47齒輪減速器電機功率：

R47Y0.18KW,R47Y0.25KW,R47Y0.37KW,R47Y0.55KW,R47Y0.75KW,R47Y1.1KW,R47Y1.5KW,R47Y2.2KW,R47Y3KW,R47Y4KW,R47Y5.5KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

R47減速機減速比：R系列減速器

3.83比減速器,4.34比減速器,4.85比減速器,5.64比減速器,6比減速器,6.96比減速器,7.76比減速器,8.01比減速器,9.07比減速器,10.15比減速器,11.79比減速器,12.54比減速器,14.56比減速器,16.22比減速器,17.89比減速器,19.27比減速器,21.81比減速器,23.28比減速器,23.59比減速器,26.7比減速器,26.74比減速器,29.88比減速器,31.12比減速器,33.79比減速器,34.73比減速器,36.93比減速器,42.87比減速器,47.75比減速器,52.69比減速器,56.73比減速器,64.21比減速器,68.54比減速器,76.23比減速器,84.9比減速器,93.68比減速器,100.86比減速器,114.17比減速器,121.87比減速器,139.99比減速器,162.94比減速器,176.88比減速器

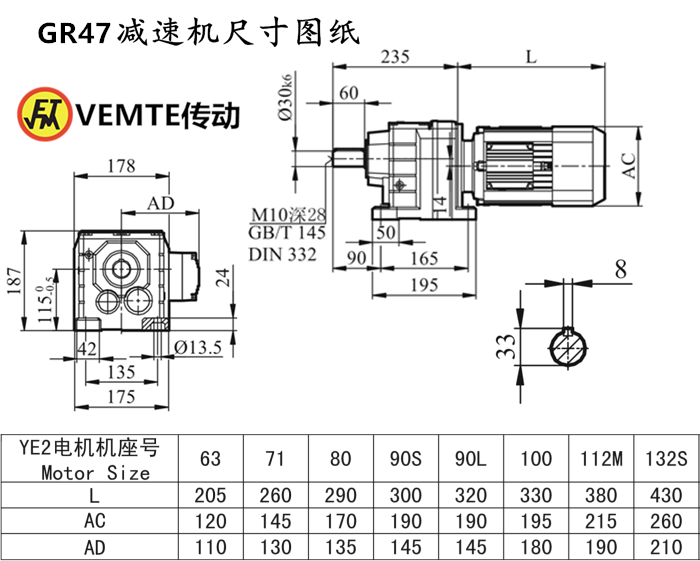

R47減速機安裝尺寸：輸出軸Φ30+鍵3（可定做），高187*寬175*長235（帶輸出軸）

R47同軸減速電機輸出轉數：

7.9轉減速機,8.6轉減速機,10轉減速機,11轉減速機,12轉減速機,14轉減速機,15轉減速機,16轉減速機,18轉減速機,20轉減速機,22轉減速機,25轉減速機,27轉減速機,29轉減速機,33轉減速機,38轉減速機,40轉減速機,41轉減速機,45轉減速機,47轉減速機,52轉減速機,52轉減速機,59轉減速機,60轉減速機,64轉減速機,73轉減速機,78轉減速機,86轉減速機,96轉減速機,112轉減速機,119轉減速機,138轉減速機,154轉減速機,175轉減速機,180轉減速機,201轉減速機,233轉減速機,248轉減速機,289轉減速機,323轉減速機,366轉減速機,。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R47減速機輸出扭矩：

減速箱144N.m,減速箱146N.m,減速箱155N.m,減速箱156N.m,減速箱159N.m,減速箱163N.m,減速箱205N.m,減速箱220N.m,減速箱230N.m,減速箱240N.m,減速箱245N.m,減速箱250N.m,減速箱265N.m,減速箱275N.m,減速箱290N.m,減速箱295N.m,減速箱300N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R47減速機電機型號:

R47DV63S4,R47DV71S4,R47DV80S4,R47DV90S4,R47DV100S4,R47DV112S4,R47DV132S4,R47DT63S4,R47DT71S4,R47DT80S4,R47DT90S4,R47DT100S4,R47DT112S4,R47DT132S4,R47DRS63S4,R47DRS71S4,R47DRS80S4,R47DRS90S4,R47DRS100S4,R47DRS112S4,R47DRS132S4,R47DRE63S4,R47DRE71S4,R47DRE80S4,R47DRE90S4,R47DRE100S4,R47DRE112S4,R47DRE132S4,R47Y63S4,R47Y71S4,R47Y80S4,R47Y90S4,R47Y100S4,R47Y112S4,R47Y132S4,R47DV63M4,R47DV71M4,R47DV80M4,R47DV90M4,R47DV100M4,R47DV112M4,R47DV132M4,R47DT63M4,R47DT71M4,R47DT80M4,R47DT90M4,R47DT100M4,R47DT112M4直連減速機,R47DT132M4,R47DRS63M4,R47DRS71M4,R47DRS80M4,R47DRS90M4,R47DRS100M4,R47DRS112M4,R47DRS132M4,R47DRE63M4,R47DRE71M4,R47DRE80M4,R47DRE90M4,R47DRE100M4,R47DRE112M4,R47DRE132M4,R47Y63M4,R47Y71M4,R47Y80M4,R47Y90M4,R47Y100M4,R47Y112M4,R47Y132M4,R47DV63L4,R47DV71L4,R47DV80L4,R47DV90L4,R47DV100L4,R47DV112L4,R47DV132L4,R47DT63L4,R47DT71L4,R47DT80L4,R47DT90L4,R47DT100L4,R47DT112L4,R47DT132L4,R47DRS63L4,R47DRS71L4,R47DRS80L4,R47DRS90L4,R47DRS100L4,R47DRS112L4,R47DRS132L4,R47DRE63L4,R47DRE71L4,R47DRE80L4,R47DRE90L4,R47DRE100L4,R47DRE112L4,R47DRE132L4,R47Y63L4,R47Y71L4,R47Y80L4,R47Y90L4,R47Y100L4,R47Y112L4,R47Y132L4,

R47減速機配各種電機的實物圖：

R47減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：減速機RF47
