R87減速機詳細信息

prevnext

R87減速機

訂購熱線:15818497138
  1. 詳細信息

R87減速機電機功率:GR系列減速機

R87Y0.55KW,R87Y0.75KW,R87Y1.1KW,R87Y1.5KW,R87Y2.2KW,R87Y3KW,R87Y4KW,R87Y5.5KW,R87Y7.5KW,R87Y11KW,R87Y15KW,R87Y18.5KW,R87Y22KW(可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機)。

同軸減速機R87減速機減速比:

5.3比減速器,6.39比減速器,7.13比減速器,8.22比減速器,9.14比減速器,9.9比減速器,11.93比減速器,13.33比減速器,15.35比減速器,17.08比減速器,19.1比減速器,21.51比減速器,23.4比減速器,27.84比減速器,27.88比減速器,31.4比減速器,32.66比減速器,34.4比減速器,36.84比減速器,41.74比減速器,47.58比減速器,52.82比減速器,60.35比減速器,63.68比減速器,72.57比減速器,81.92比減速器,93.38比減速器,103.65比減速器,118.43比減速器,124.97比減速器,142.41比減速器,155.34比減速器,181.77比減速器,205.71比減速器,216.54比減速器,246.54比減速器

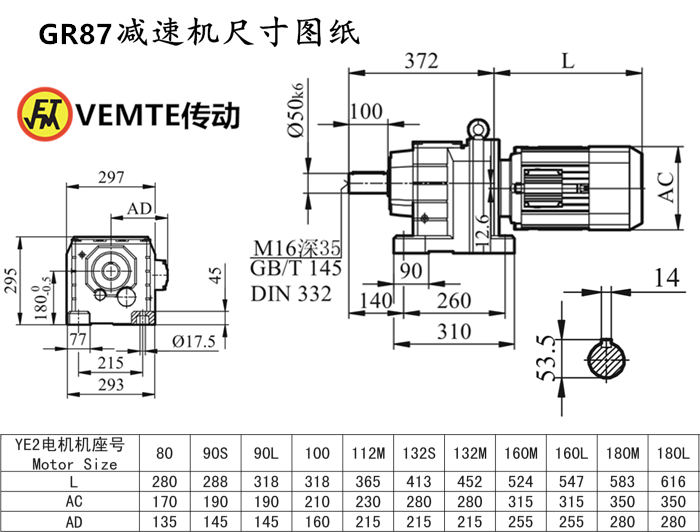

R87減速機安裝尺寸:輸出軸Φ50+鍵3.5(可定做),高295*寬293*長372(帶輸出軸)


R87減速機輸出轉數:

5.7轉減速機,6.5轉減速機,6.8轉減速機,7.7轉減速機,9轉減速機,9.8轉減速機,11轉減速機,12轉減速機,14轉減速機,15轉減速機,17轉減速機,19轉減速機,22轉減速機,23轉減速機,27轉減速機,29轉減速機,34轉減速機,38轉減速機,41轉減速機,43轉減速機,45轉減速機,50轉減速機,50轉減速機,60轉減速機,65轉減速機,73轉減速機,82轉減速機,91轉減速機,105轉減速機,117轉減速機,141轉減速機,153轉減速機,170轉減速機,196轉減速機,219轉減速機,264轉減速機。(以上轉數均為四級電機算出的,可用兩級電機,六級電機計算,也可以用變頻電機調速)

同軸減速器R87減速機輸出扭矩:

減速箱1550N.m,減速箱1440N.m,減速箱1390N.m,減速箱1340N.m,減速箱1280N.m,減速箱1230N.m,減速箱1180N.m,減速箱1210N.m,減速箱1160N.m,減速箱1070N.m,減速箱1020N.m,減速箱910N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者兩個減速機組合使用)


R87減速機電機型號:

R87DV80S4,R87DV90S4,R87DV100S4,R87DV112S4,R87DV132S4,R87DV160S4,R87DV180S4,R87DV200S4,R87DT80S4,R87DT90S4,R87DT100S4,R87DT112S4,R87DT132S4,R87DT160S4,R87DT180S4,R87DT200S4R87DRS80S4,R87DRS90S4,R87DRS100S4,R87DRS112S4,R87DRS132S4,R87DRS160S4,R87DRS180S4,R87DRS200S4,R87DRE80S4,R87DRE90S4,R87DRE100S4,R87DRE112S4,R87DRE132S4,R87DRE160S4,R87DRE180S4,R87DRE200S4,R87Y80S4,R87Y90S4,R87Y100S4,R87Y112S4,R87Y132S4,R87Y160S4,R87Y180S4,R87Y200S4,R87DV80M4,R87DV90M4,R87DV100M4,R87DV112M4,R87DV132M4,R87DV160M4,R87DV180M4,R87DV200M4,R87DT80M4,R87DT90M4,R87DT100M4,R87DT112M4,R87DT132M4,R87DT160M4,R87DT180M4,R87DT200M4,R87DRS80M4,R87DRS90M4,R87DRS100M4,R87DRS112M4,R87DRS132M4,R87DRS160M4,R87DRS180M4,R87DRS200M4,R87DRE80M4,R87DRE90M4,R87DRE100M4,R87DRE112M4,R87DRE132M4,R87DRE160M4,R87DRE180M4,R87DRE200M4,R87Y80M4,R87Y90M4,R87Y100M4,R87Y112M4,R87Y132M4,R87Y160M4,R87Y180M4,R87Y200M4R87DV80L4,R87DV90L4,R87DV100L4,R87DV112L4,R87DV132L4,R87DV160L4,R87DV180L4,R87DV200L4R87DT80L4,R87DT90L4,R87DT100L4,R87DT112L4,R87DT132L4,R87DT160L4,R87DT180L4,R87DT200L44,R87DRS80L4,R87DRS90L4,R87DRS100L4,R87DRS112L4,R87DRS132L4,R87DRS160L4,R87DRS180L4,R87DRS200L4R87DRE80L4,R87DRE90L4,R87DRE100L4,R87DRE112L4,R87DRE132L4,R87DRE160L4,R87DRE180L4,R87DRE200L4,R87Y80L4,R87Y90L4,R87Y100L4,R87Y112L4,R87Y132L4,R87Y160L4,R87Y180L4,R87Y200L4,

R87減速機配各種電機的實物圖:


齒輪減速電機廠R87減速機生產工廠展示:看廠請聯系微信13826972124,獲取位置,需提前一天預約


推薦類似型號:減速機RF87

關鍵詞:R系列減速機_同向減速器馬達_GR型減速電機_R向減速機臥式_R系列斜齒輪減速機

R系列減速機型號:R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機

R系列齒輪減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13826972124,留言告知工程師參數要求


標簽:  R87減速器廠 R87減速機 R87斜齒輪減速機 減速電機R87 減速電機GR87

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
R87減速機三維圖紙下載3D 點擊下載
R系列減速機樣本 點擊下載
