SF87減速機電機功率：伺服電機減速機

SF87Y0.12KW,SF87Y0.18KW,SF87Y0.25KW,SF87Y0.37KW,SF87Y0.55KW,SF87Y0.75KW,SF87Y1.1KW,SF87Y1.5KW,SF87Y2.2KW,SF87Y3KW,SF87Y4KW,SF87Y5.5KW,SF87Y7.5KW,SF87Y11KW,SF87Y15KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

SF87減速機減速比：

288比減速機,258.18比減速機,222.4比減速機,202.96比減速機,180比減速機,151.3比減速機,139.05比減速機,123.48比減速機,110.4比減速機,99.26比減速機,91.2比減速機,86.15比減速機,81.76比減速機,77.14比減速機,70.43比減速機,64.27比減速機,64比減速機,57比減速機,47.91比減速機,44.03比減速機,39.1比減速機,34.96比減速機,31.43比減速機,27.28比減速機,25.5比減速機,24.43比減速機,21.43比減速機,20.27比減速機,19.7比減速機,17.49比減速機,15.64比減速機,14.06比減速機,12.21比減速機,10.93比減速機,9.07比減速機,7.88比蝸輪蝸桿減速機

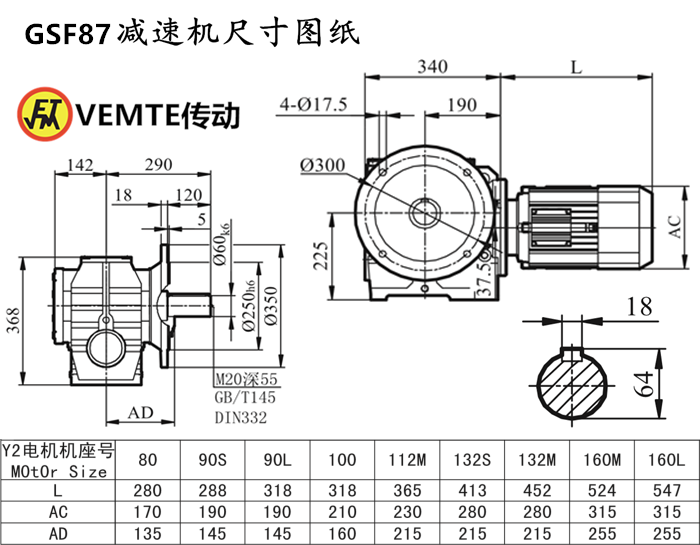

SF87減速機安裝尺寸：輸出軸+鍵Φ64（可定做），高368*寬432（帶輸出軸）*長340

SF87減速箱輸出轉數：

4.9轉減速箱,5.4轉減速箱,6.3轉減速箱,6.9轉減速箱,7.8轉減速箱,9.3轉減速箱,10轉減速箱,11轉減速箱,14轉減速箱,15轉減速箱,16轉減速箱,17轉減速箱,18轉減速箱,20轉減速箱,22轉減速箱,25轉減速箱,29轉減速箱,32轉減速箱,36轉減速箱,40轉減速箱,45轉減速箱,51轉減速箱,55轉減速箱,57轉減速箱,65轉減速箱,69轉減速箱,71轉減速箱,80轉減速箱,90轉減速箱,100轉減速箱,115轉減速箱,128轉減速箱,154轉減速箱,178轉減速箱。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

SF87自鎖減速器輸出扭矩：

2280Nm減速器,2260Nm減速器,2210Nm減速器,2150Nm減速器,2100Nm減速器,2060Nm減速器,2000Nm減速器,1960Nm減速器,1510Nm減速器,1880Nm減速器,1600Nm減速器,1820Nm減速器,1700Nm減速器,1240Nm減速器,1140Nm減速器,1010N.m減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

SF87減速機電機型號：SF87DV71S4,SF87DV80S4,SF87DV90S4,SF87DV100S4,SF87DV112S4,SF87DV132S4,SF87DV160S4,SF87DT71S4,SF87DT80S4,SF87DT90S4,SF87DT100S4,SF87DT112S4,SF87DT132S4,SF87DT160S4,SF87DRE71S4,SF87DRE80S4,SF87DRE90S4,SF87DRE100S4,SF87DRE112S4,SF87DRE132S4,SF87DRE160S4,SF87DRS71S4,SF87DRS80S4,SF87DRS90S4,SF87DRS100S4,SF87DRS112S4,SF87DRS132S4,SF87DRS160S4,SF87Y71S4,SF87Y80S4,SF87Y90S4,SF87Y100S4,SF87Y112S4,SF87Y132S4,SF87Y160S4,SF87DV71M4,SF87DV80M4,SF87DV90M4,SF87DV100M4,SF87DV112M4,SF87DV132M4,SF87DV160M4,SF87DT71M4,SF87DT80M4,SF87DT90M4,SF87DT100M4,SF87DT112M4,SF87DT132M4,SF87DT160M4,SF87DRE71M4,SF87DRE80M4,SF87DRE90M4,SF87DRE100M4,SF87DRE112M4,SF87DRE132M4,SF87DRE160M4,SF87DRS71M4,SF87DRS80M4,SF87DRS90M4,SF87DRS100M4,SF87DRS112M4,SF87DRS132M4,SF87DRS160M4,SF87Y71M4,SF87Y80M4,SF87Y90M4,SF87Y100M4,SF87Y112M4,SF87Y132M4,SF87Y160M4,SF87DV71L4,SF87DV80L4,SF87DV90L4,SF87DV100L4,SF87DV112L4,SF87DV132L4,SF87DV160L4,SF87DT71L4,SF87DT80L4,SF87DT90L4,SF87DT100L4,SF87DT112L4,SF87DT132L4,SF87DT160L4,SF87DRE71L4,SF87DRE80L4,SF87DRE90L4,SF87DRE100L4,SF87DRE112L4,SF87DRE132L4,SF87DRE160L4,SF87DRS71L4,SF87DRS80L4,SF87DRS90L4,SF87DRS100L4,SF87DRS112L4,SF87DRS132L4,SF87DRS160L4,SF87Y71L4,SF87Y80L4,SF87Y90L4,SF87Y100L4,SF87Y112L4,SF87Y132L4,SF87Y160L4

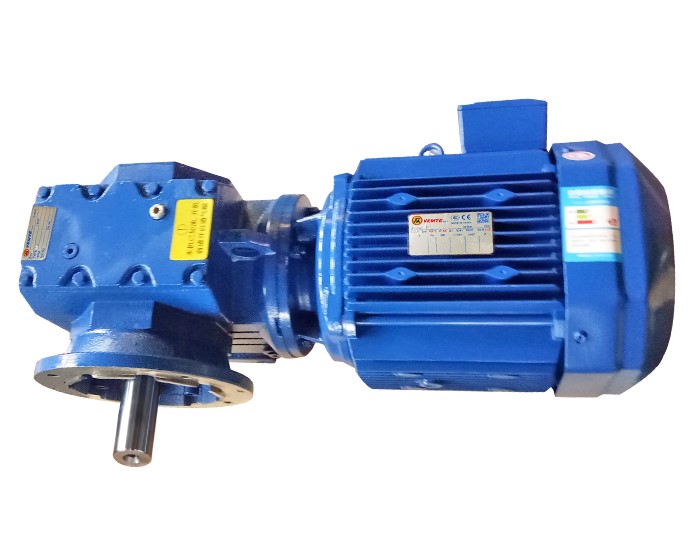

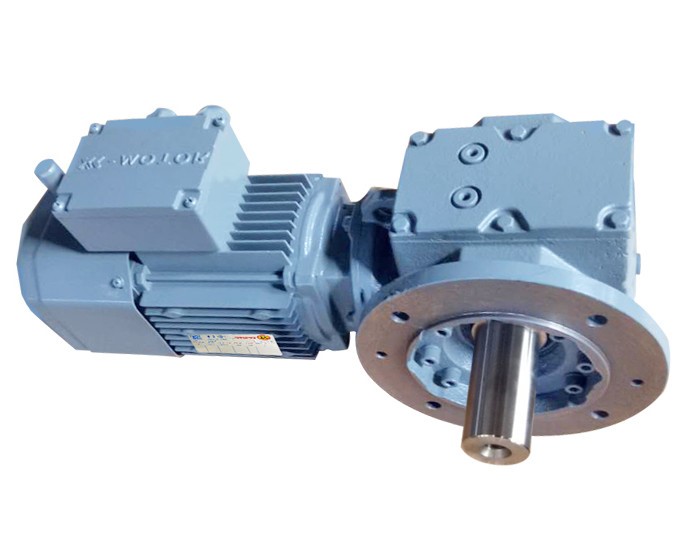

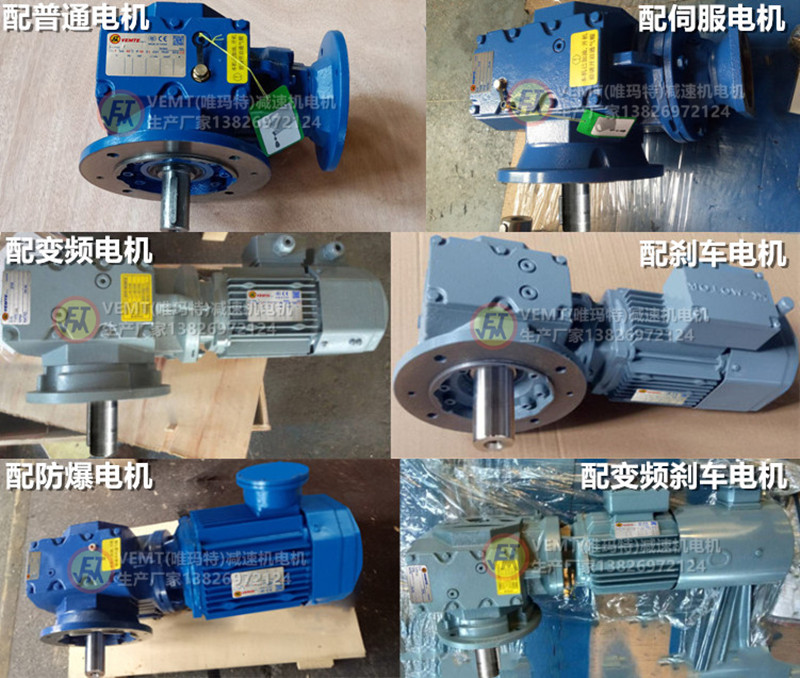

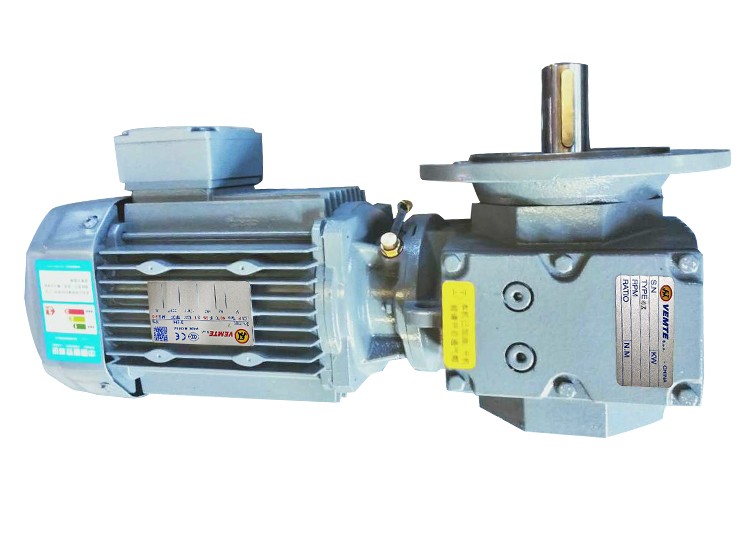

SF系列減速電機SF87減速機搭配各種電機實物圖：

SF87減速機工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://jxtxfw.cn/product/list-sfxiliejiansuji-cn.html

推薦類似型號：減速機SA87
